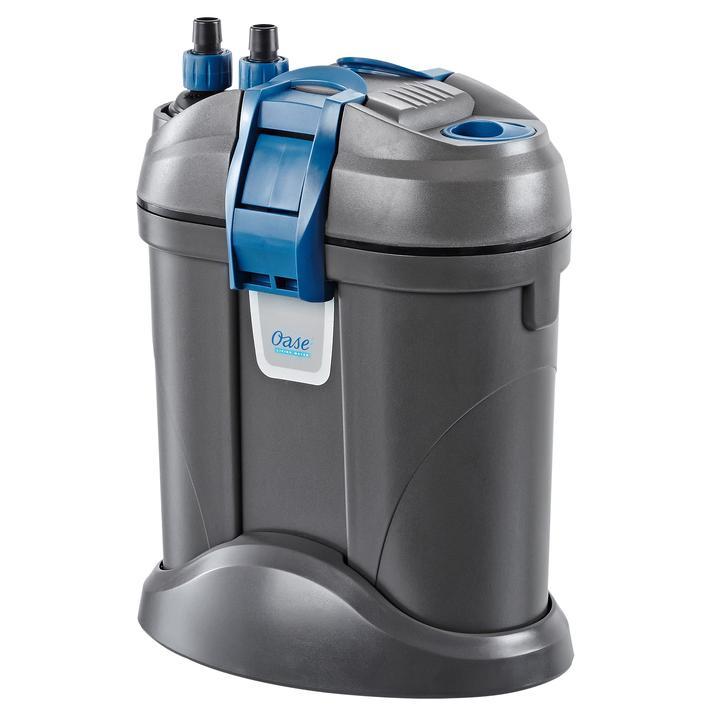

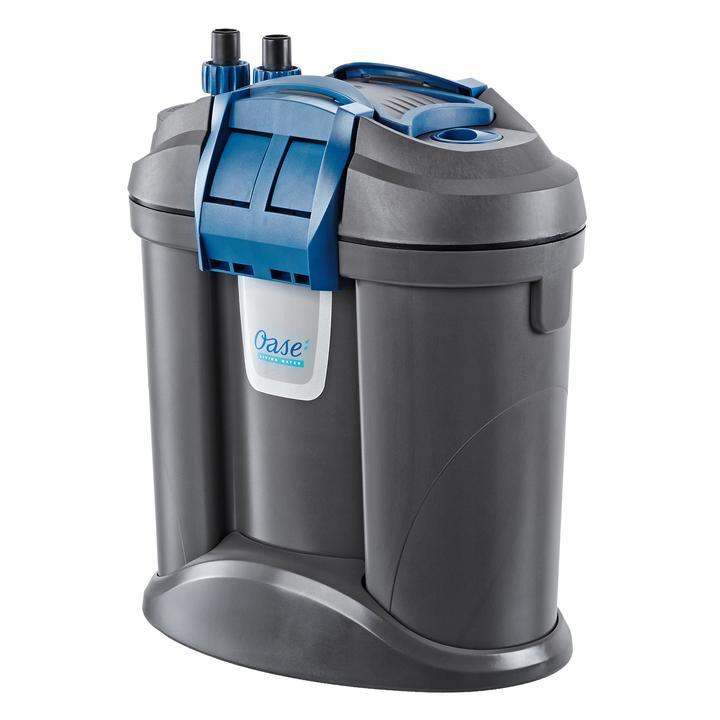

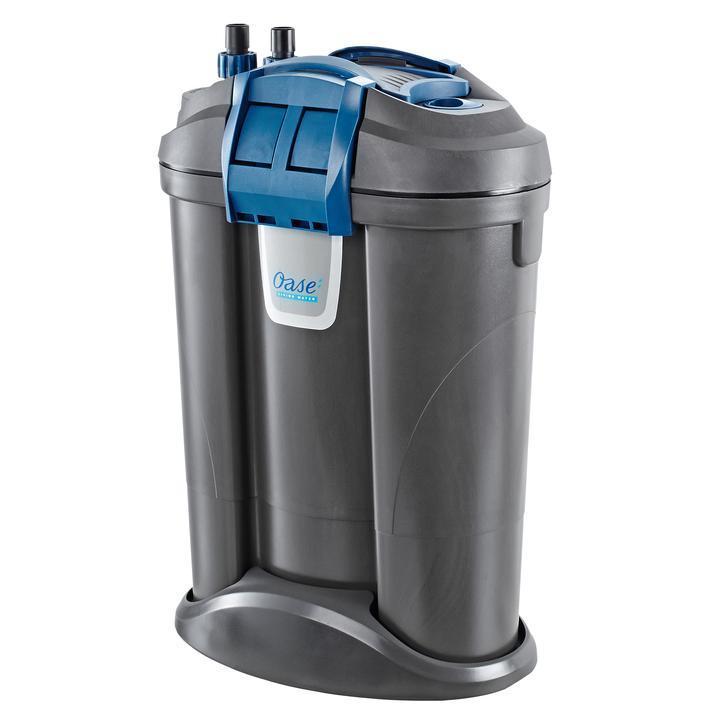

Oase FiltoSmart External Filters
External Aquarium Filter - For a Simplified Filtration
The external filter is suitable for aquariums with a volume of 60 to 300 litres and with a moderate fish population. With multi-step, mechanical/biological filtering and a large filter surface as well as a water flow rate from 300 to 1000 l/h, crystal clear water is guaranteed. It runs quietly and energy-efficiently. The FiltoSmart range is sold as a complete set with filter media, hoses, adapter, suction and discharge pipes and water diffuser. The filter is available with or without an adjustable heater. The compact size of the FiltoSmart 60 is ideal for use in small tanks. The external filter can be placed next to or behind the aquarium. A bracket for the aquarium wall can be purchased separately if desired.
Features:
-

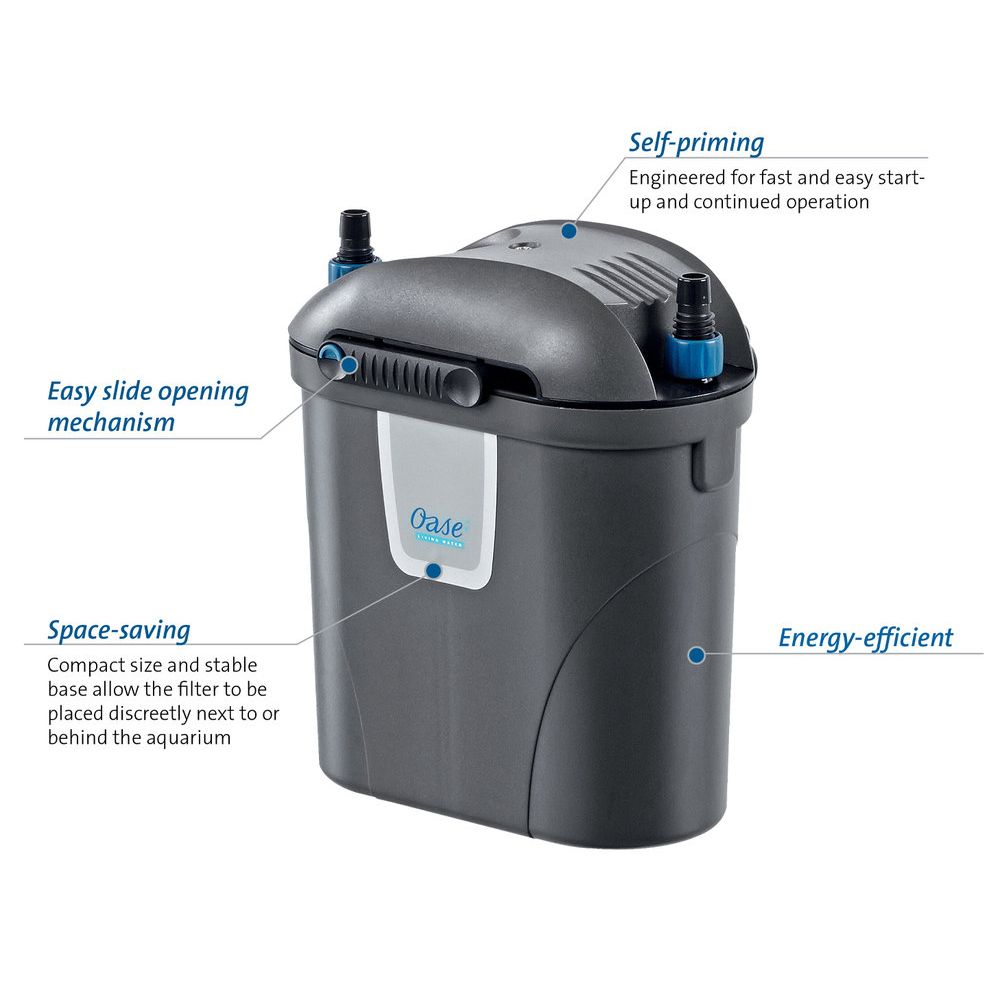

Compact filter with large filter surface – Multi-staged mechanical and biological filtration provides clear, healthy water and a high surface area for beneficial bacteria to colonize
-

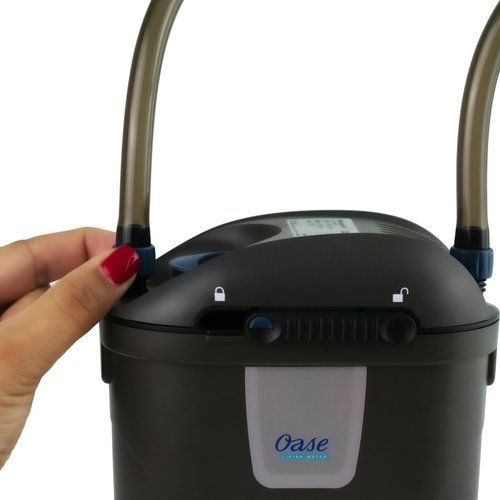

No mess maintenance – Locking features are integrated into the inlet/outlet connection unit to ensure no accidental spillage or messy maintenance
-
Self-priming – Engineered for fast and easy startup and continued operation
-
Adjustable flow control – Flow can be adjusted for the inlet and outlet
-
Quiet operation – Sound dampening design
-
Heater integration capability – Easily integrate an OASE HeatUp adjustable heater into the FiltoSmart canister using a ThermoFit (HeatUp and ThermoFit not included)
-
What’s in the Box – Aquarium Filter, filter media, intake tube with inlet strainer, water distributor nozzle, spray bar, inlet and outlet adapters with flow control, tubing, fittings, removable base, and power cable
-
Made in Italy, backed by German engineering
-
Fresh and marine water compatible
-
UL certified filter
-
3 year warranty
Specification:
| Specs | FiltoSmart 100 |
FiltoSmart 200 |
FiltoSmart 300 |
| Dimensions (in.) | 8 x 5.5 x 10 | 11 x 7 x 13.3 | 11 x 7 x 16.9 |
| Dimensions (mm) | 205 x 139 x 260 | 288 x 179 x 337 | 288 x 179 x 428 |
| Rated voltage | 120V / 60 Hz | ||
| Power consumption, filter | 11 watts | 17 watts | 23 watts |
| Power cord length | 6 ft. (1.8 m) | ||
| Net weight | 4.4 lbs. (2 kg) | 9 lbs. (4.1 kg) | 10.6 lbs. (4.8 kg) |
| Maximum flow rate | 160 gph (600 l/h) | 210 gph (800 l/h) | 260 gph (1000 l/h) |
| Maximum head height | 4.6 ft. (1.4 m) | 3.3 ft. (1 m) | 5 ft. (1.5 m) |
| Connection fits | 1/2 in. ID (14 mm) | 5/8 in. ID (16 mm) | |
| Tubing | 1/2 in. ID x 8 ft. (12/16 mm x 2.5 m) | 5/8 in. ID x 8 ft. (16/22 mm x 2.5 m) | |
| Filter volume | 0.34 gal (1.3 L) | 1.1 gal (4.2 L) | 1.7 gal (6.4 L) |
| Pre-filter volume | 0.18 gal (0.7 L) | 0.4 gal (1.5 L) | |
| Suitable for aquariums up to max. | 30 gal (100 L) | 55 gal (200 L) | 80 gal (300 L) |
| Suitable for | fresh and marine water | ||

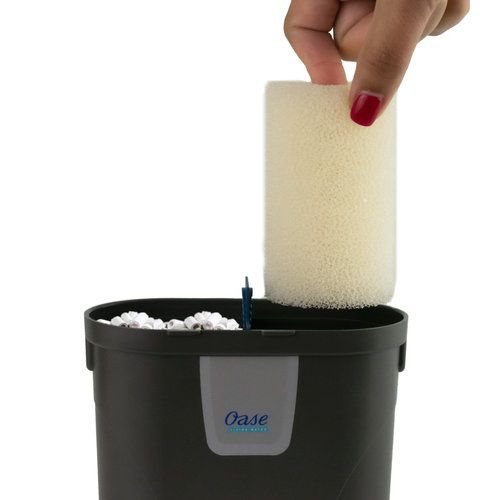

Filter Media
The FiltoSmart series uses filter foams of differing pore densities and filter media for optimal water quality and clarity. Each filter has its own replacement filter foam set. FiltoSmart 100-300 models use ceramic filter media and FiltoSmart 200-300 models also uses carbon filter media. Timing to replace the filter media varies upon aquarium size, number of fish and plants, and a decline in filter performance. It is best to only replace the ceramic filter media when you do a complete tank restart as to not disturb the beneficial biological load.
| FiltoSmart 100 |
FiltoSmart 200 |
FiltoSmart 300 |
|
| Filter Foam Set | Filter Foam Set for the FiltoSmart 100 | Filter Foam Set for the FiltoSmart 200 | Filter Foam Set for the FiltoSmart 300 |
| Ceramic filter media (14.8 oz per packet) | 1 packet | 2 packets | 3 packets |
| Carbon filter media (4.6 oz per packet) | - | 2 packets | 2 packets |
ThermoFit (not included)
Utilize a ThermoFit to retrofit a FiltoSmart with a heater. This accessory creates a watertight seal necessary for an aquarium setup.
| ThermoFit 100 | ThermoFit 200 | ThermoFit 300 | |
| Works with | FiltoSmart 100 HeatUp 100 |
FiltoSmart 200 HeatUp 200 |
FiltoSmart 300 HeatUp 300 |
